what are timber frame ties?
A timber frame tie, also known as a timber frame connector or a timber frame joint, is a piece of hardware that connects two or more timber beams or posts in a timber frame structure.
In a timber frame structure, the timbers are typically joined together using traditional woodworking joinery techniques such as mortise and tenon joints, but timber frame ties can also be used to reinforce the structure and provide additional support.
Timber frame ties can take many different forms, such as metal plates, bolts, and screws, and are often designed to be hidden within the timber frame structure to maintain its aesthetic appeal. These connectors can be used to secure a range of timber frame elements, such as roof trusses, floor joists, and wall frames, and are an important component in ensuring the structural integrity and stability of a timber frame building.

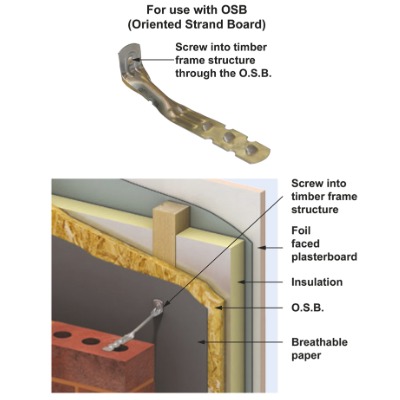

installation of timber frame ties
The installation of timber frame ties will depend on the type of tie being used and the specific requirements of the timber frame structure. However, here are some general steps for installing timber frame ties.
1. Identify the location where the tie is needed and mark it on the timber. Make sure that the location is accurately marked and aligned with the other timbers in the structure.
2. Prepare the timber by cutting the mortise or other joining method as needed for the specific type of timber frame tie you are using.
3. Position the tie into the mortise or joint, making sure it is flush with the timber surface.
4. Secure the tie in place with screws, bolts, or other fasteners, depending on the specific type of timber frame tie you are using. Make sure the fasteners are tightened securely, but be careful not to over-tighten and damage the timber.
5. Repeat the process for all other timber frame ties needed in the structure.
It's important to follow the manufacturer's instructions for the specific timber frame ties being used to ensure proper installation and avoid any potential safety hazards.
Additionally, it's recommended to consult with a professional timber frame builder or engineer to ensure that the installation is done correctly and meets all necessary building codes and regulations.
